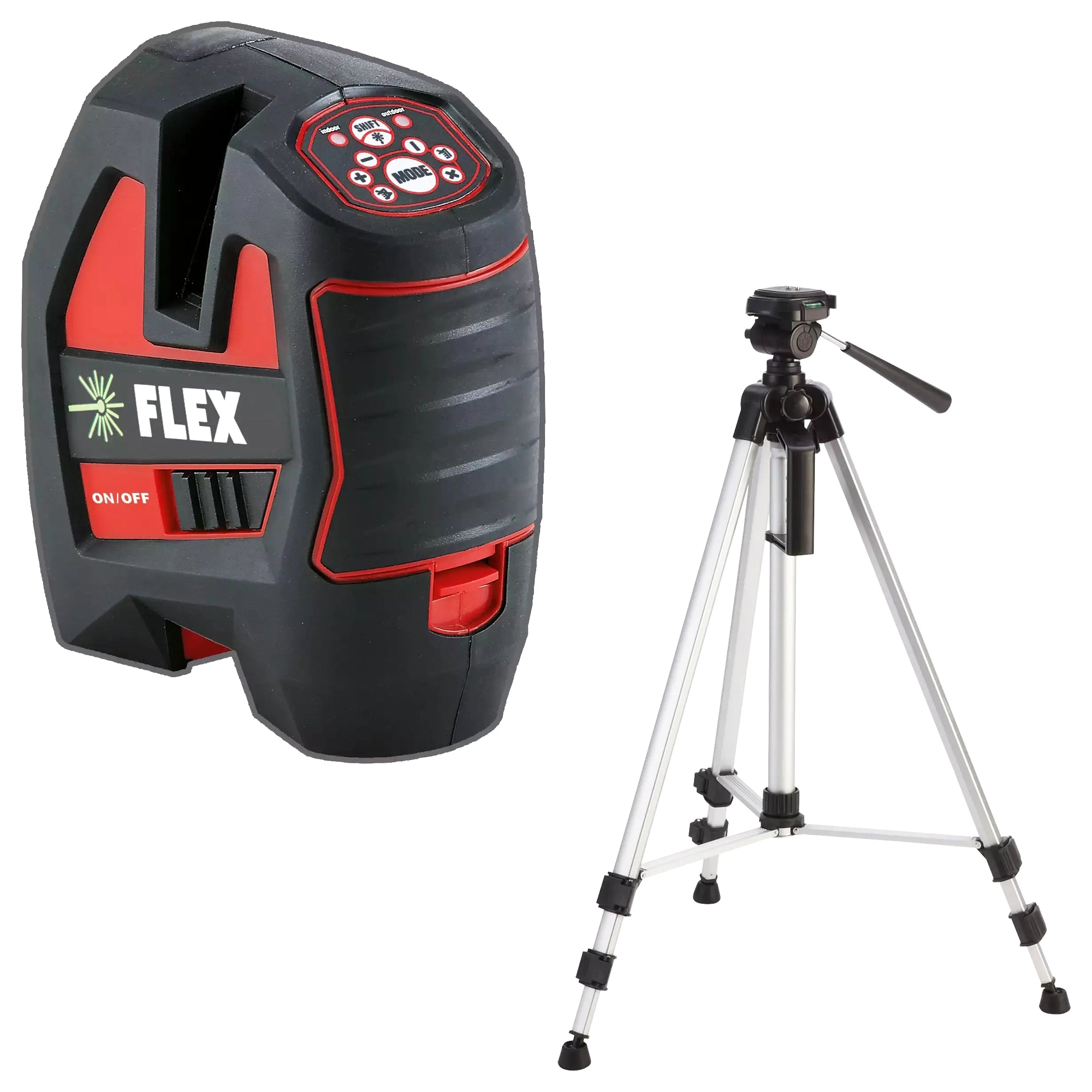

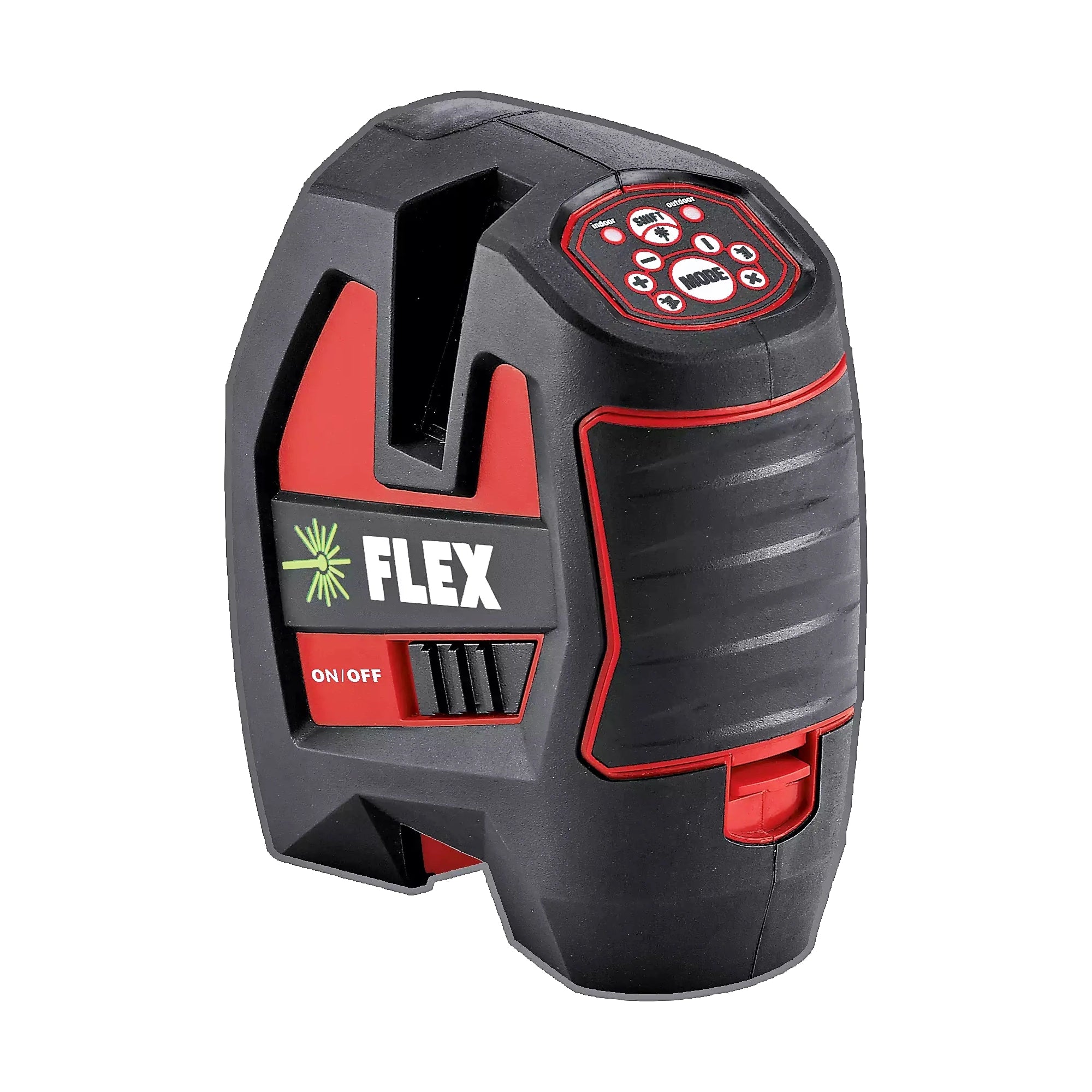

Laser Flex ALC 3/1-G/R + LKS 65-170 F 1/4, with receiver mode. With a horizontal laser line and two vertical laser lines arranged perpendicularly to each other with angle at 90 ° more appiomin (red laser line), which can be activated individually
- Lead function
- Special anti -reflective glass allow the projection of clear and high precision laser lines.
- Green laser diode
- The green laser lines are much brighter, therefore perfectly distinguishable even in conditions of poor visibility.
- Increase in the useful flow rate up to 50 meters, with receiver up to 70 meters
- Self -leveling
- Optical warning sign when the self -leveling field has been overcome
- Deactivable self -leveling
- Easy to use
- Safe in transport
- Integrated battery with lithium polymers
- 1/4 "threaded fitting for easel
- Ideal for alignment of frames
Technical specifications
- Number of horizontal lines 1 pcs
- Number of vertical lines 2 pcs
- Visible area 110 ° horizontal lines
- Visible area of vertical lines 110 °
- Lead function yes
- Laser class 2
- Max. Work area 20 m
- Max. Work area with receiver 70 m
- Precision 0.3 / lot 0.6 mm
- Thermal range -5 - +50 ° C
- Electric power supply integrated battery
- LXLAXA size 60 x 112 x 126 mm
- Weight 0.53 kg
Accessories supplied
- 1 × WB-M/S 1/4 Alc-Basic (428167)
- 1 × USB cable
- 1 × USB charger
- 1 × transport bag

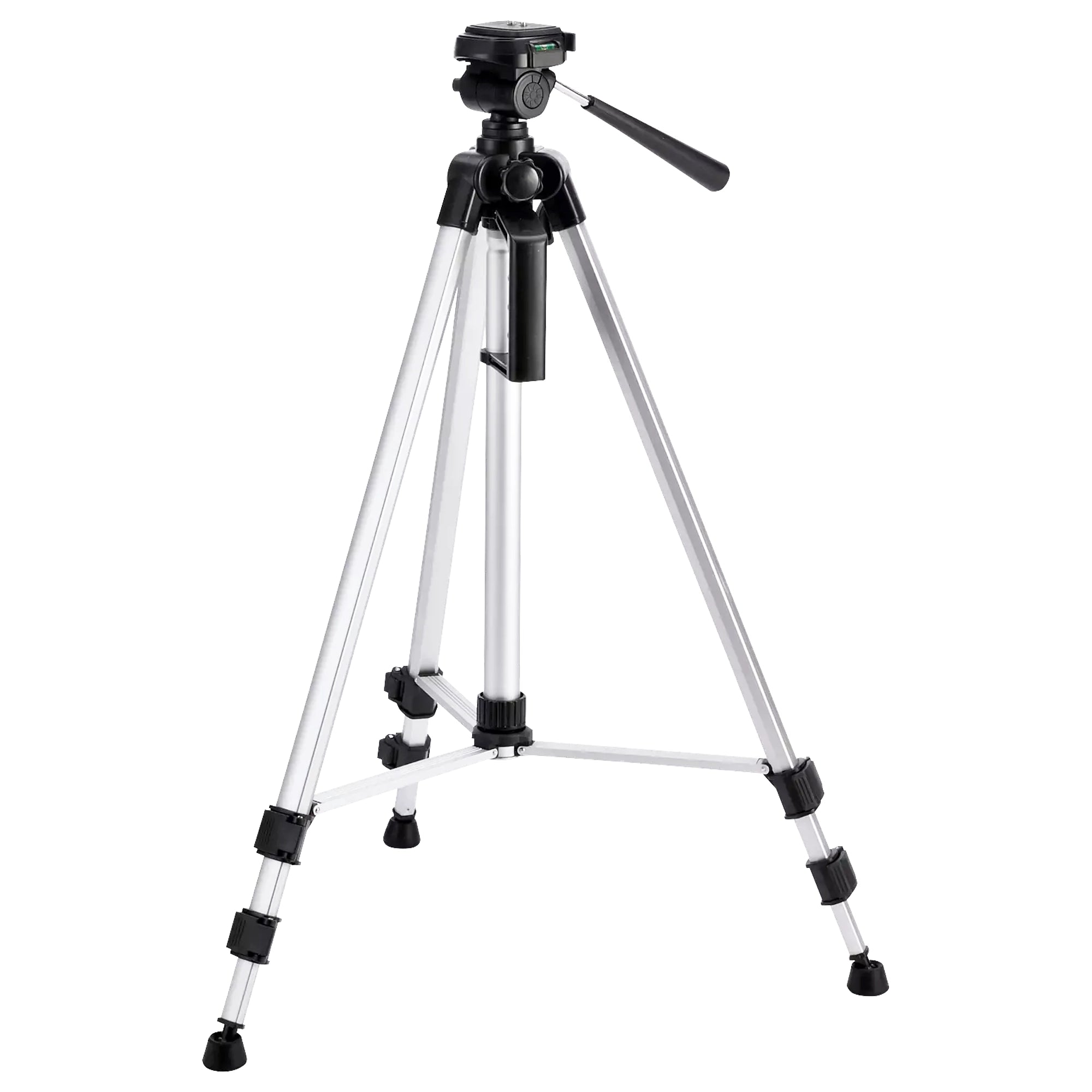

- Lks 65-170 F 1/4 (398624)
