The Body Junction Festool KV-LR32 D8/50 perfect. Now even more versatile. The new furniture connector for the DOMINO DF 500 jointer.

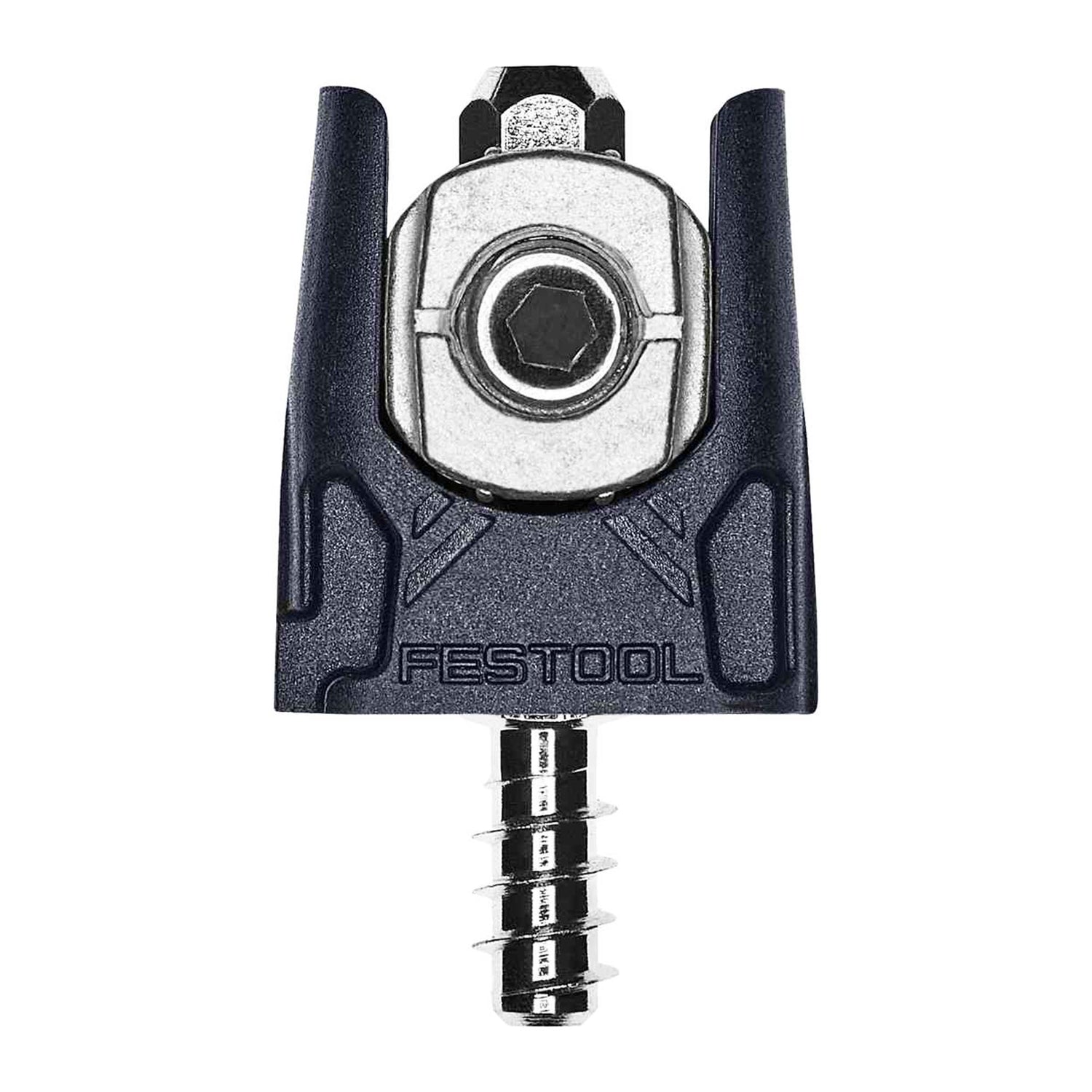

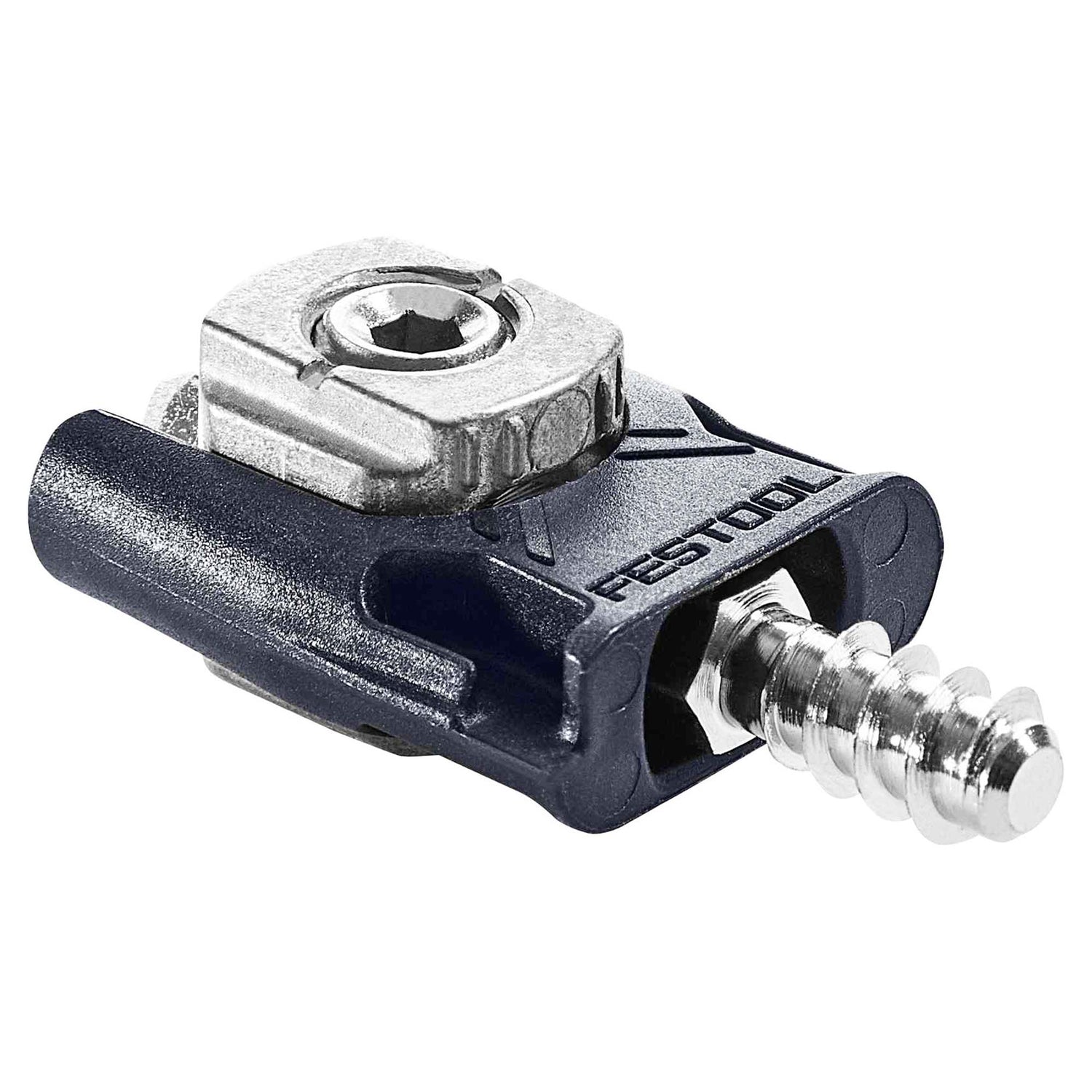

Body junction Festool KV-LR32 D8/50 – Flexibility and precision for flawless furniture
There Body junction Festool KV-LR32 D8/50 It is the perfect solution for creating solid, removable and precise furniture, taking advantage of the DOMINO DF 500 joint milling machine. Thanks to the ingenious DOMINO system, the positioning of the joints is simple, precise and fast, without the need for additional centering devices or accessories.
Ideal for panels with a thickness of 18 to 28 mm, this hardware ensures sturdy structures but easy to assemble and disassemble, perfect for those who want flexibility and solidity in furniture construction.
Advantages of the Junction Festool KV-LR32 D8/50
✔ Precise positioning: thanks to the DOMINO system, each joint is positioned perfectly without additional tools
✔ Quick assembly: the wide clamping stroke and the long pin make assembly easier, even in complex furniture such as wardrobes
✔ Total protection: flush surface hardware to avoid scratches and damage to panels
✔ Tolerances managed without problems: up to 1.4 mm automatically compensated by the joint
✔ Complete versatility: for corner joints, straight joints and series holes
✔ Demountable structures: ideal for flexible furnishings, exhibition stands and modular constructions
Technical Specifications
🔩 Joint system: DOMINO DF 500
📐 Compatible panel thickness: 18 – 28 mm
🔧 Dowel milling diameter: D8
🟡 Euro pin hole: 5 mm
🔩 DOMINO milling depth (bottom): 28 mm
⚫ Diameter of hole in the bottom: 15 mm
Equipment
• 50 × Angle stop with threaded pin
• 50 × Plastic Shells
• 50 × Euro Thread Pin for Series Hole Drilling
• Expansion stops included
Why buy the Body Junction Festool KV-LR32 D8/50?
Perfect for professionals furniture sector, exhibition stands and precision carpentry, this junction guarantees excellent results and dismantling without compromising stability. Every detail is designed to facilitate assembly, with maximum aesthetic and functional cleanliness.
Where to buy the Junction Festool KV-LR32 D8/50?
You find the Body junction Festool KV-LR32 D8/50 in the shops EmmetiStore, a point of reference for artisans and professionals who want to work with intelligent, fast and quality tools.
