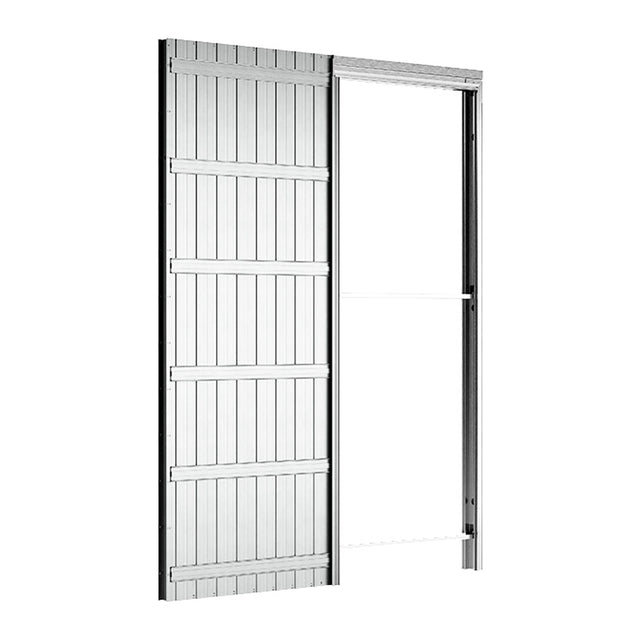

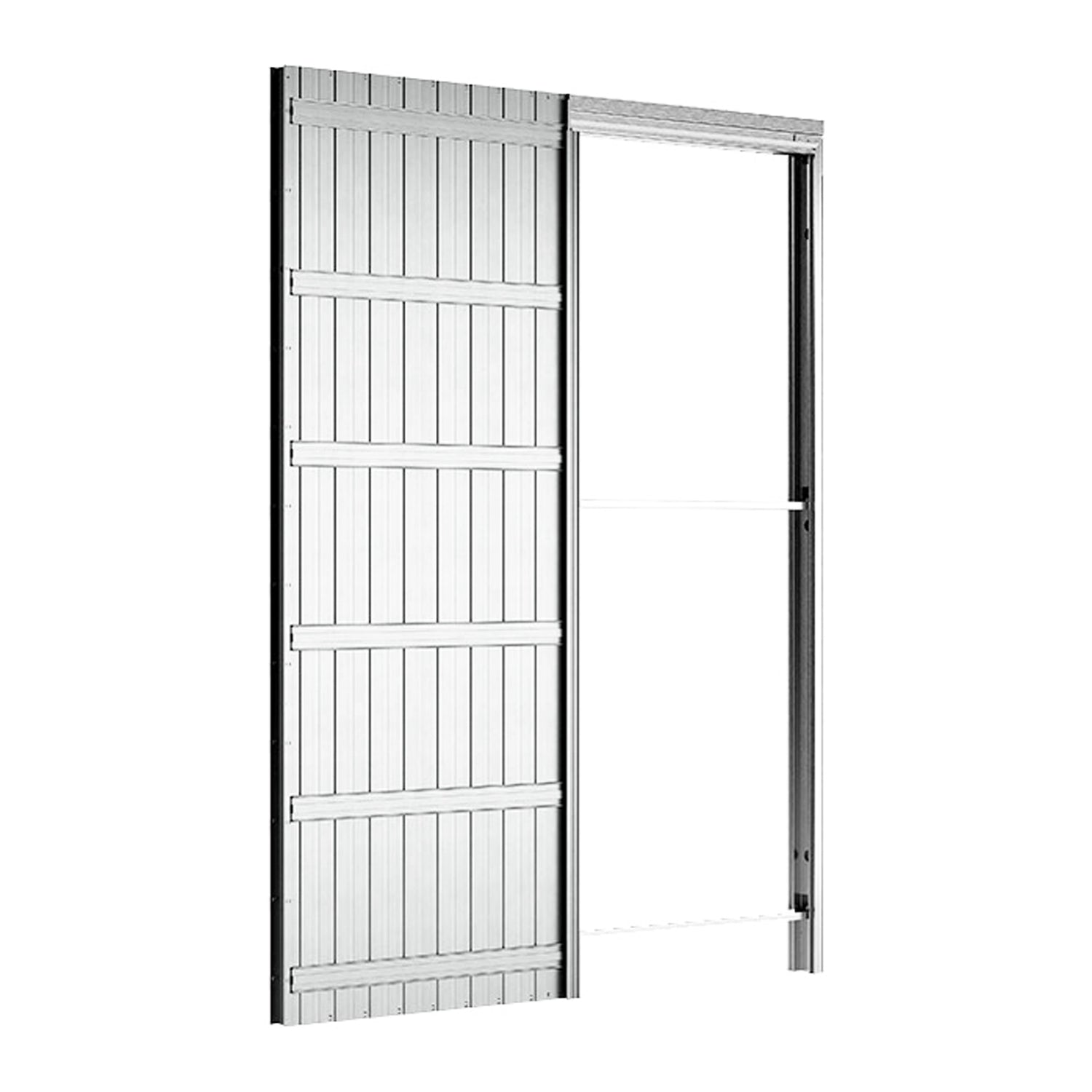

Counterframe Ermetika Absolute Evo Plasterboard

Counterframe Ermetika Absolute Evo Plasterboard is the evergreen of Ermetika which represents the ideal solution to optimize the habitability of any environment. This pocket door frame allows you to install the interior door without limiting the use of the space adjacent to the opening. Among its peculiar qualities are the simplicity of assembly, the maximum speed with which it can be installed and the versatility of use, both for renovation work and for new constructions.

TECHNICAL SPECIFICATIONS

• Panels with double vertical slat in DX51 Z100 sheet metal

• 6+6 horizontal “omega” reinforcement crosspieces

• Pre-assembled upper crosspiece and anodized aluminum track

• Perimeter profiles with gripping seat to be filled flush

• 1 spacer + 1 “disposable” lower alignment bar to maintain the square

•  1 Standard Trolley Kit:

  • 2 trolleys with 4 wheels on ball bearings, capacity 100 kg

  •  “Easy setup” lower door guide in nylon for floor fixing

  •  Bolts for trolleys, recessed brackets in aluminium for hooking doors flush with the frame

  • Nylon limit switch for door closing adjustment with locking screws
