The Tile Fischer Thermax allows thermally insulated fixing for spaced installation in external thermal insulation composite systems (ETICS).

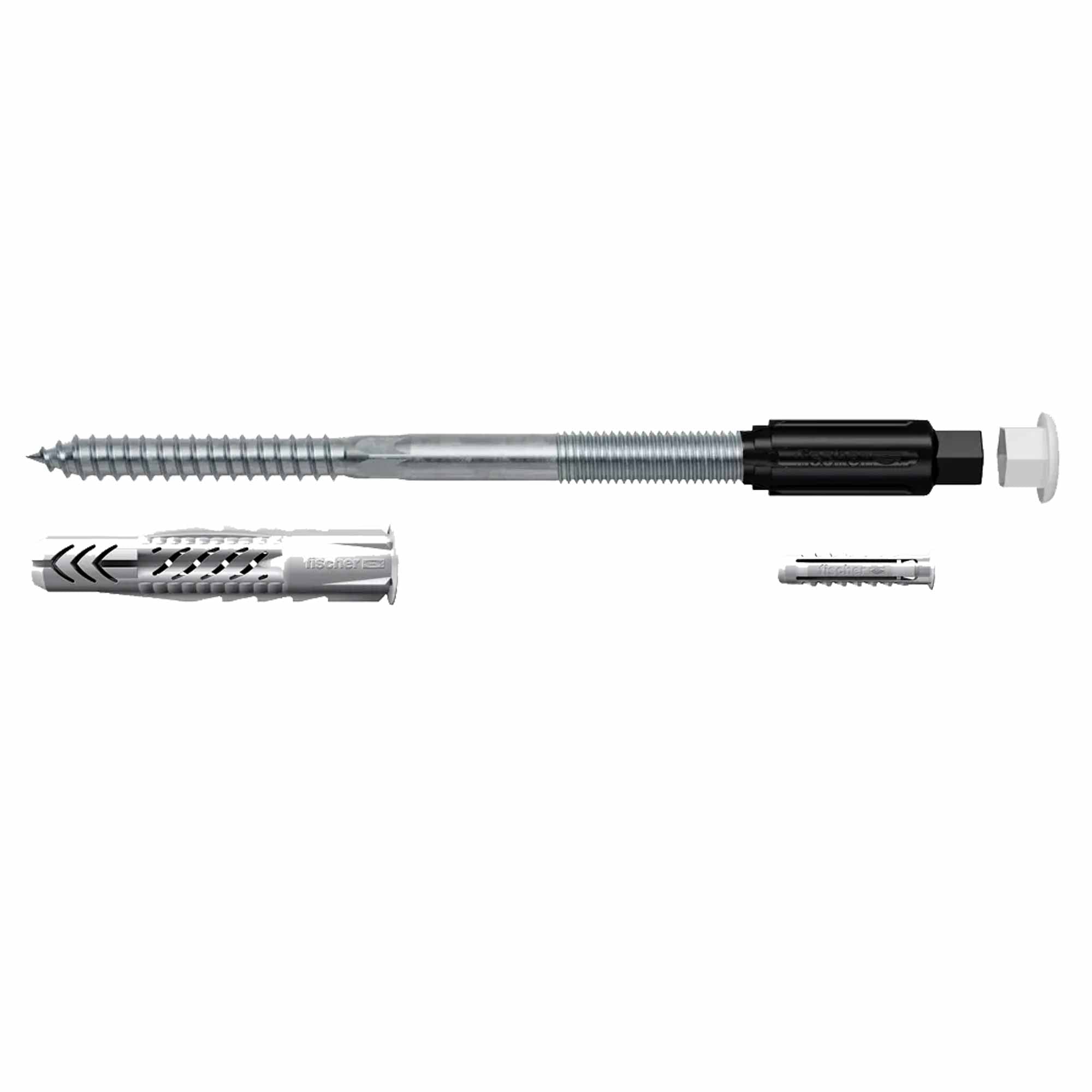

Dowel Fischer Thermax: Insulated Fixings for ETICS Systems
The piece Fischer Thermax is the ideal solution for spaced and thermally insulated fixings in external thermal insulation composite systems (ETICS). This advanced product eliminates thermal bridges, ensuring safe and efficient installation without damaging insulation materials.
Advantages of the Dowel Fischer Thermax
• No Thermal Bridge: Thanks to the insulating cone, it guarantees the maintenance of the energy efficiency of the ETICS system.
• Ease of Installation: It does not require specific accessories for assembly, simplifying use.
• Self-Cuttering Plastic Cone: Ensures precise and safe installation without compromising the integrity of the insulation coating.
• Perfect Alignment: Allows you to fix objects without damaging the support material.
• Versatility: Compatible with all substrate materials, ensuring a wide range of applications.
Ideal Applications
• Awnings
• Canopies
• Balcony railings
• Console
• Air conditioners
• Satellite dishes
Technical Specifications
Thermax 8/80
• Hole diameter: 10 mm
• Hole depth: 140 mm
• Useful length: 60-80 mm
• Anchoring depth: 60 mm
• Ø Cap: 18 mm
• Tightening wrench: SW 10 mm
• Screw Compatibility: Chipboard, metric and sheet metal screws 4.5 - 6.0 / M6 / 6.3
Thermax 8/100
• Hole diameter: 10 mm
• Hole depth: 160 mm
• Useful length: 80-100 mm
• Anchoring depth: 60 mm
• Ø Cap: 18 mm
• Tightening wrench: SW 10 mm
• Screw Compatibility: Chipboard, metric and sheet metal screws 4.5 - 6.0 / M6 / 6.3

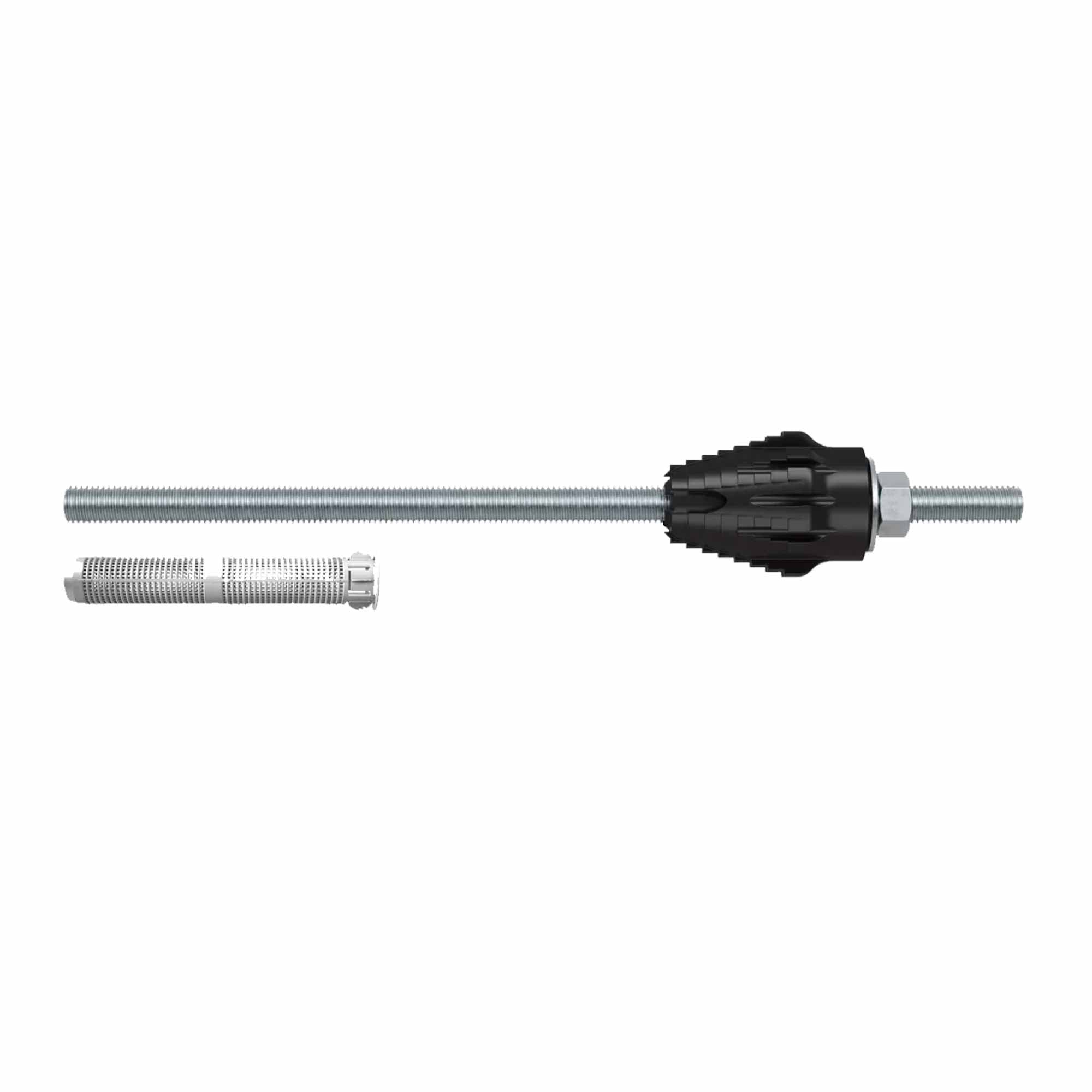

Thermax 12/110
• Fixing length: 245 mm
Why Choose Fischer Thermax?
The piece Fischer Thermax offers the perfect combination of reliability, ease of use and energy efficiency. It is the ideal choice for professionals who want to ensure safe and long-lasting installations on ETICS systems.
Where to buy it?
Find the piece Fischer Thermax in the variants available at EmmetiStore stores or on our online shop, with fast shipping and technical support for every need.
